This article will explain:
- Measurements and lengths of your hardware which may help when building a venue or cabinetry to suit your POS solutions
- The specifications of your hardware
All-in-One Touch Screens:
These are your all in one touch screen solutions. By default, these have a base included, however you can remove the base to opt for a wall mount or pole mount.
Senor Pico POS900
| Purpose | Server/Client Terminal |
| Maximum Configuration |
2 x WMT or KTS Terminals Total (Inc. Server/Client)
|
| Processor | Intel Celeron J1900 1.99Ghz 4 Cores |
| Ram | 4GB |
| Operating System | Windows 10 LTSB |
| Dimensions | 324mm (W) x 368mm (D) x 265mm (H) |
Server Computers:
The Brain of the operation. The servers are typically used for larger venues or venues with tablet solutions. Generally the servers can be stored away in the Comms Rack, or near the modem, however they can also be used in conjunction with a touch monitor and used as a POS screen.

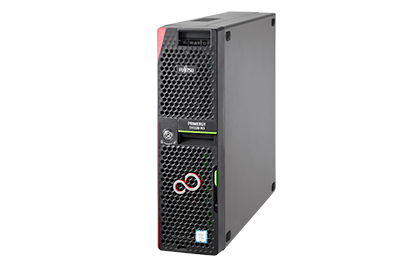

Fujitsu TX1320
| Purpose | Premium Server |
| Maximum Configuration | 15 x WMT Terminals or 10 x WMT iPads |
| Processor | Intel Xeon E3-1230 V6 3.9GHz 4 Core / 8 Threads |
| RAM | 8GB |
| Operating System | Windows Server 2019 Essentials |
| Dimensions | 98mm (W) x 399mm (D) x 340 mm (H) |
Touch Monitors:
These are your Touch Monitors that will connect to an external PC. Usually this will be bundled with an Intel NUC or a Server.
Senor cSMON15
| Dimensions | 365mm (W) x 208mm (D) x 303mm (H) |
Printers:
These are the POS printers for printing out all your dockets.
Thermal Printers use heat to print the dockets, generally these should be placed away from a heat source such as a kitchen. These are single docket printers.
Impact Printers are designed for use in the kitchen, and allow up to 2 ply printing.

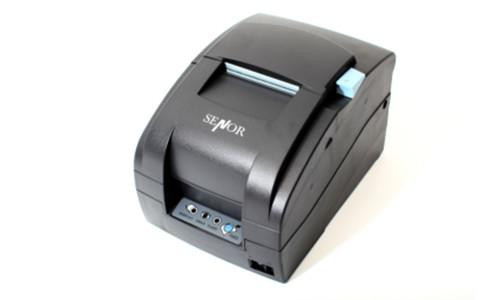

Senor DP220V3
| Description | Senor DP220V3 Impact Printer |
| Interface | Serial+USB+Ethernet |
| Paper type | Bond 76mm x 76mm 1/2 Ply |
| Print Speed | 5.1 Lines Per Second |
| Warranty | 2 Years |
| Special Features | |
| Dimensions |
160mm (W) x 239mm (D) x 147mm (H) |

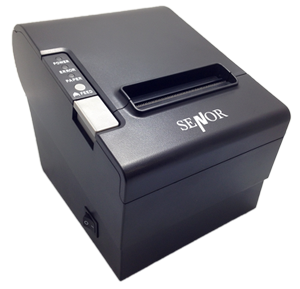

Senor TP-100USE
| Description | Senor TP100 Thermal Printer |
| Interface | Serial+USB+Ethernet |
| Paper type | Thermal 80mm x 80mm |
| Print Speed | Max. 250 mm/sec |
| Warranty | 1 Year |
| Special Features | Has an Inbuilt Buzzer |
| Dimensions | 145mm (W) x 195mm (D) x 148mm (H) |
GK420D
| Description | Zebra GK series Label/Sticker Printer |
| Interface | USB or Ethernet |
| Paper type |
Zebra 4" x 2" x 1" Direct Thermal Zebra 2" x 1" x 1" Direct Thermal |
| Print Speed | Max. 127 mm/sec |
| Warranty | 1 Year |
| Special Features | Label printing compatible with OrderMate |
| Dimensions | 244mm (W) x 326mm (D) x 262mm (H) |
Cash Drawers:
The standard drawer style cash draws are able to be used plugged into the touch screen directly, or plugged into the printer to allow for automatic opening.
The flip-top style cashdraw must be placed next to a printer, as the voltage is different.

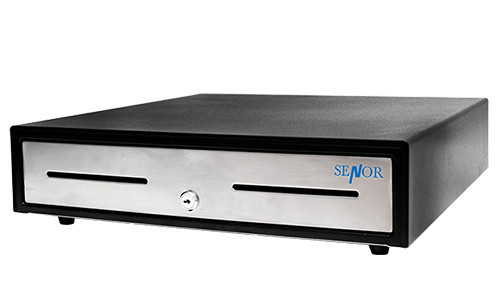

KC4141
| Dimensions | 415mm (W) x 415mm (D) x 105mm (H) |
| Voltage | 12V |
| Warranty | 1 Year |
| Special Features | Emergency Opening |

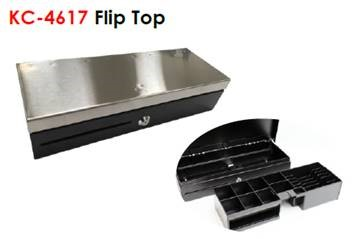

KC-4617FP
| Dimensions | 460mm (W) x 170mm (D) x 100mm (H) |
| Voltage | 24V |
| Warranty | 1 Year |
| Special Features | Good for benchtop fitouts |
Mounting Accessories:
Additional accessories that allow for a different mounting option rather than a base.
- VESA adapter - W200mm x H180mm (Thickness from wall 15mm)
- Standard Bench Pole (Senor) - H510mm x Diameter 50mm (thread thickness 32mm)
- Ceiling Pole - 45mm diameter L900-1800mm (adjustable)
